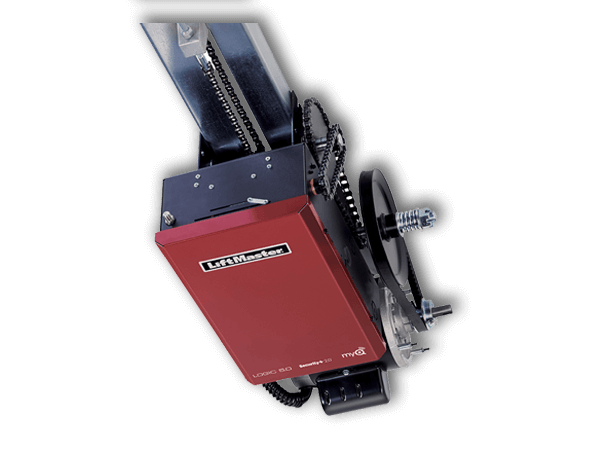

LiftMaster T electric garage door opener
LiftMaster powered by myQ logo

T

LiftMaster powered by myQ logo

T

LiftMaster T electric garage door opener

Features

The T model is an industrial-duty trolley door opener, as manufactured by The Chamberlain Group and is for use on standard lift sectional doors. It is rated for more than 12 cycles per hour during peak periods.

  • Trolley type door opener
  • Voltage/phase:
    • Single-Phase: 115 V and 230 V
    • 3-Phase: 208 V, 230 V and 460 V, 575 V
  • Additional headroom required: 4 in (102 mm)
  • Required depth: door height + 48 in (1219 mm)
  • Class 2 circuit with 40 VA transformer
  • Built‑in 3‑channel, 315 MHz radio receiver accepts up to 23 Security+® or unlimited DIP switch remotes. 3‑button remotes can be programmed for open/close/stop operation
  • Maintenance Alert SystemTM establishes a routine maintenance schedule based on the number of cycles or calendar date. Includes self‑diagnostic system that allows you to troubleshoot up to eight different error codes
  • Timer‑to‑close allows programming in 1‑sec or 15‑sec increments and permits timed automatic door closure after the door reaches the fully open position; requires monitored photosensors, either CPS‑U, CPS‑UN4, or a 4‑wire edge, using the CPS‑EI edge interface
  • Thermal motor overload can be easily reset from the 3‑button floor level control station
  • Continuous‑duty high‑starting torque motor with instant reverse.
  • Motor overload protection.
  • Quick‑mount header bracket which provides fast, swing‑up installation.
  • Single‑or three‑phase, capacitor start on single‑phase.
  • Switchless motor eliminates stuck start switch and motor malfunctions on single-phase door openers.
  • Spring‑loaded disconnect for emergency manual operation.
  • Motor is removable without affecting limit switch settings.
  • Wiring type: All operators are factory preset to C2 wiring, providing momentary contact to open and stop, with constant contact to close. Monitored entrapment protection, using approved photo sensors CPS‑U are standard. All other wiring types, B2, T, TS and FSTS, can be selected with the selection of a switch. LiftMaster CPS‑UN4 and CPS‑RPEN4 photosensors or a monitored 4‑wire sensing edge (via a CPS‑EI Edge Interface card) are optional. Logic 4.0 door openers can only accept UL‑approved LiftMaster CPS‑U, CPS‑UN4, CPS‑RPEN4 or CPS‑EI monitored entrapment protection devices.
  • First‑stage heavy‑duty 5L V‑belt; second #41 chain; output on trolley #48 chain on 1⁄3 and ½ HP; #41 chain on ¾ and 1 HP.
  • Solenoid‑actuated brake is standard on ¾ and 1 HP units to prevent coasting of door.
  • Solenoid‑actuated brake is standard on 3/4 and 1 HP units to prevent coasting of door.
  • Ball bearings on output shaft; heavy‑duty, oil‑filled bushings on reduction shafts.
  • Adjustable friction clutch helps protect against major damage to door and operator should the door meet an obstruction.
  • NEMA 1 type electrical box, heavy‑duty 11‑gauge steel frame with durable powder coat finish, all reduction sprockets drilled and pinned to shafts.
  • High‑strength dual L‑rail track with nylon quiet‑gliding chain guides on rail spacers for quiet, smooth operation.
  • 1.5-second delay‑on‑reverse circuit to prevent premature door and operator wear.
  • The timer‑to‑close automatically closes the door - programmable in 1‑second or 15‑second increments.
  • The mid‑stop stops the door at programmable mid‑stop during open travel.
  • The maximum run timer signals the door to reverse or stop if closing time exceeds maximum by more than 10 seconds.
  • Maintenance alert system (5 000 to 10 000 cycles).
  • UL and CSA listed.
  • 2‑year warranty.

Standard security systems

Your security, our priority!

Security+ 2.0 ®

Security+ 2.0 ® radio receiver is standard on-board with Logic 5.0 operators and virtually eliminates radio frequency interference. Accepts up to 90 1‑button or 30 3‑button remote controls plus up to 30 wireless keypads or an unlimited number of DIP switch remote controls

Standard Security plus

Emergency Disconnect

Manual release in case of power failure.


CPS® Commercial Protector System®

CPS‑U photo eyes are shipped with unit. They project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Alternate entrapment protection devices may be used or added, such as light curtains and optical edge systems.


Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

Security+ 2.0 ®

Standard Security plus

Security+ 2.0 ® radio receiver is standard on-board with Logic 5.0 operators and virtually eliminates radio frequency interference. Accepts up to 90 1‑button or 30 3‑button remote controls plus up to 30 wireless keypads or an unlimited number of DIP switch remote controls


Emergency Disconnect

Manual release in case of power failure.


CPS® Commercial Protector System®

CPS‑U photo eyes are shipped with unit. They project an invisible light beam across the garage door opening and automatically reverse the door if anything interrupts the beam while the door is going down. Sensing technology will stop the door from closing if contact is made with a person or object. Alternate entrapment protection devices may be used or added, such as light curtains and optical edge systems.


Warning

Garage doors and garage door openers can be dangerous if not installed and verified by a professional and not used properly. Children must be supervised by an adult when they are inside or in proximity of the garage.

Included in package

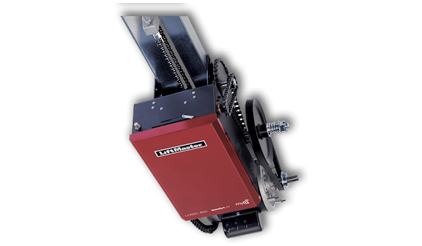

LiftMaster T electric garage door opener
T door operator
3-button NEMA 1 station (02103)
3-button NEMA 1 station with MAS (02103L)
(Maintenance Alert System)
Photoelectric sensors (CPS-U)
Photoelectric sensors (CPS-U)

Also included:

  • Rail and chain according to door height
  • Hardware for installation

Remote(s) optional
